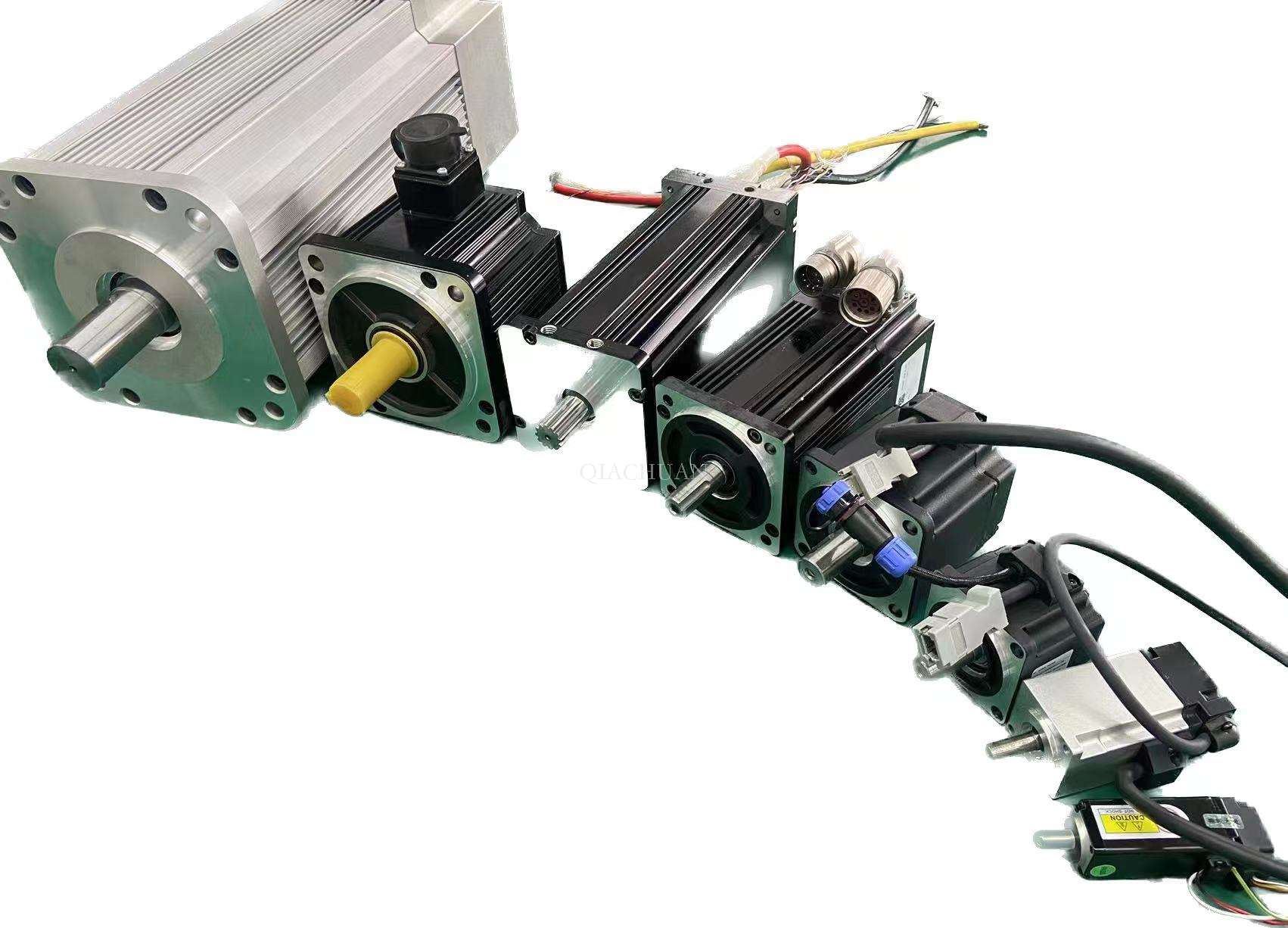

Universal DC Servo Motor

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Model QC SERIES
Rated Power 0.05KW-7.5KW
Rated Speed 1000RPM-6000RPM
Rated Torque 0.3Nm-100Nm
Voltage DC
Rated Current AAA
Consult immediately
Detail



Reference
IEC 60072-1:1991；GT/T 4772.1-1999
Application temperature
0～40℃(Customized -40～70℃)
Isolation grade (IEC 60034-1)
155(F) (Customized H )
Application altitude (IEC 60034-1)
0...1000m(Customized 4000m)
IP grade (IEC 60034-5)
IP65，with standard oil seal

IP54，without oil seal ( shaft through section IP54, other section IP65)

Customized IP67/68
Cooling method(IEC 60034-6)
IC410，nature cooling (customized wind cooling & water cooler)
Temperatuer protection
Temperature PT1000、PTC，mounted inside stator
Feedback elements
Inside
Vibration level (IEC 60034-14)
A, Top to rated speed
Sound Pressure Level ( SPL)
≤75dB，Top to rated speed



QC040 SERIES DC SERVO MOTOR


Model
Voltage
Rated output
Rated Torque
Rated speed
Peak speed
Rated current
Peak torque
Peak current
Poles
Rotor inertia
Torque constant
Voltage constant
U
Pn
Mn
Nn
Nn
In
Mm
Im
　
Jm
Kt
Ke
　
W
Nm
rpm
rpm
A
Nm
A
Pair
kgcm2
Nm/A
V/Krpm
QC040D00530K¨-10¨¨¨
48VDC
50
0.16
3000
3850
1.5
0.55
5.75
5
0.044 (0.05)
0.132
8
QC040D01030K¨-10¨¨¨
48VDC
100
0.32
3000
3850
2.9
1.1
11.5
5
0.074 (0.08)
0.132
8



QC060 SERIES DC SERVO MOTOR


Model
Voltage
Rated output
Rated Torque
Rated speed
Peak speed
Rated current
Peak torque
Peak current
Poles
Rotor inertia
Torque constant
Voltage constant
U
Pn
Mn
Nn
Nn
In
Mm
Im
　
Jm
Kt
Ke
　
W
Nm
rpm
rpm
A
Nm
A
Pair
kgcm2
Nm/A
V/Krpm
QC060D02030K¨-10¨¨¨
48VDC
200
0.64
3000
3850
5.8
1.92
18.2
5
0.26 (0.28)
0.132
8
QC060D04030K¨-10¨¨¨
48VDC
400
1.28
3000
3850
11.6
3.84
36.4
5
0.52 (0.54)
0.132
8
QC060D06030K¨-10¨¨¨
48VDC
600
1.91
3000
3850
17.4
5.73
54.6
5
0.72 (0.74)
0.132
8



QC080 SERIES DC SERVO MOTOR


Model
Voltage
Rated output
Rated Torque
Rated speed
Peak speed
Rated current
Peak torque
Peak current
Poles
Rotor inertia
Torque constant
Voltage constant
U
Pn
Mn
Nn
Nn
In
Mm
Im
　
Jm
Kt
Ke
　
W
Nm
rpm
rpm
A
Nm
A
Pair
kgcm2
Nm/A
V/Krpm
QC080D07530K¨-10¨¨¨
48VDC
750
2.4
3000
3850
19.6
7.2
62
5
1.33 (1.42)
0.132
8
QC080D1K030K¨-10¨¨¨
48VDC
1000
3.18
3000
3850
27.5
9.55
83
5
1.81(1.90)
0.132
8



QC130 SERIES DC SERVO MOTOR


Model
Voltage

Rated output
Rated Torque
Rated speed
Peak speed
Rated current
Peak torque
Peak current
Poles
Rotor inertia
Torque constant
Voltage constant
U

Pn
Mn
Nn
Nn
In
Mm
Im
　
Jm
Kt
Ke
　

W
Nm
rpm
rpm
A
Nm
A
Pair
kgcm2
Nm/A
V/Krpm
QC130D1K530K¨-10¨¨¨
48VDC

1500
4.78
3000
3350
38.5
14.33
120
5
10 (11.3)
0.14
8.6
QC130D2K030K¨-10¨¨¨
48VDC

2000
6.37
3000
3500
53
19.1
170
5
13.8 (15.1)
0.136
8.2
QC130D2K530K¨-10¨¨¨
48VDC

2500
8
3000
3300
60
24
190
5
17.5 (18.8)
0.147
8.9
QC130D3K030K¨-10¨¨¨
48VDC

3000
9.55
3000
3400
75
28.65
230
5
19.7 (21)
0.141
8.5



QC180 SERIES DC SERVO MOTOR


Model
Voltage
Rated output
Rated Torque
Rated speed
Peak speed
Rated current
Peak torque
Peak current
Poles
Rotor inertia
Torque constant
Voltage constant
U
Pn
Mn
Nn
Nn
In
Mm
Im
　
Jm
Kt
Ke
　
W
Nm
rpm
rpm
A
Nm
A
Pair
kgcm2
Nm/A
V/Krpm
QC180D3K020K¨-10¨¨¨
48VDC
3000
14.33
2000
2150
74
43
230
5
42.5
0.227
13.71
QC180D4K020K¨-10¨¨¨
48VDC
4000
19.1
2000
2150
99
57.3
306
5
55
0.227
13.77
QC180D5K020K¨-10¨¨¨
48VDC
5000
23.88
2000
2150
125
71.64
383
5
63
0.22
13.33
QC180D6K020K¨-10¨¨¨
48VDC
6000
28.65
2000
2150
152
57.3
304
5
83
0.21
12.67
QC180D7K520K¨-10¨¨¨
48VDC
7500
35.81
2000
2150
180
71.62
360
5
115
0.223
13.5
