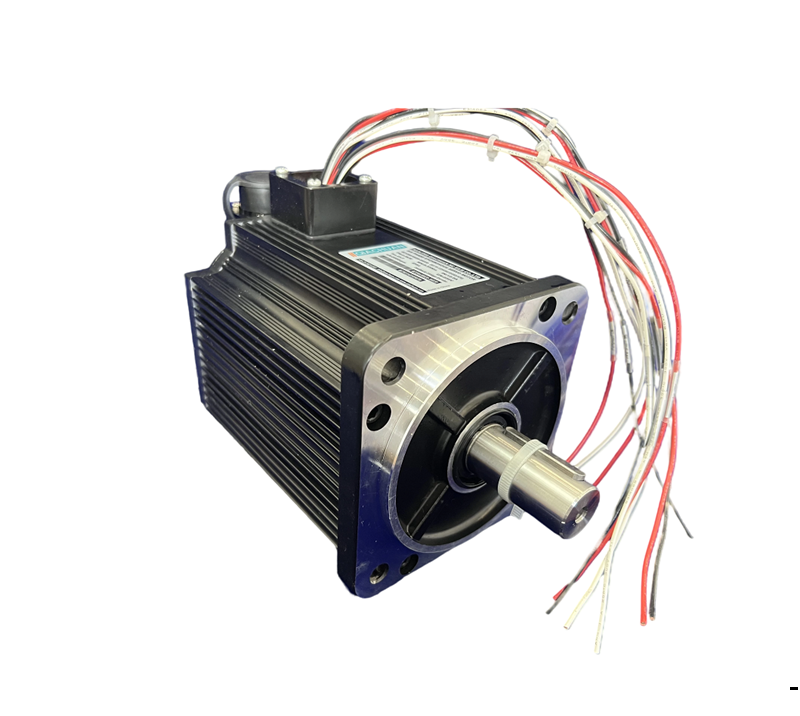

SIX PHASE MOTOR

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Model QC SERIES
Rated Power 2000W
Rated Speed 2000rpm
Rated Torque 9.55Nm
Voltage 220Vac (3 phase)
Rated Current AAA
Consult immediately
Detail



Model
Voltage
Rated output
Rated Torque
Rated speed
Rated current
Peak torque
Peak current
Stall Torque
Stall current
Resistance
Induction
D Resistance
Q Induction
Rotor Inertia
Torque constant
Voltage constant
U
Pn
Mn
Nn
In
Mm
Im
Ts
Is
RL
LL
Ld
Lq
Jm
Kt
Ke
　
W
Nm
rpm
A
Nm
A
N.m
A
Ω
mH
mH
mH
kgcm2
Nm/A
V/Krpm
QC130A2K020-10EX6D30
220VAC
2000
9.55
2000
12
28.65
36
10.5
13.2
0.8
2.1
1.46
1.4
17
0.98
59
QC130A2K626-10EX6D30
220VAC
2600
9.55
2600
16
28.65
37
10.5
13.2
0.65
1.7
1.18
1.13
17
0.9
52.5
QC130B2K020-10EX6D30
380VAC
2000
9.55
2000
6
28.65
19
10.5
6.6
2.8
8.9
5.85
5.6
17
1.96
118
QC130C2K020-10EX6D30
110VAC
2000
9.55
2000
16
28.65
48
10.5
17.6
0.41
1.18
0.82
0.79
17
0.73
44
QC130D1K020-10EX6D30
48VDC
1000
4.78
2000
25
14.33
72
5.26
27.5
0.1
0.25
0.147
0.141
17
0.22
13.2
