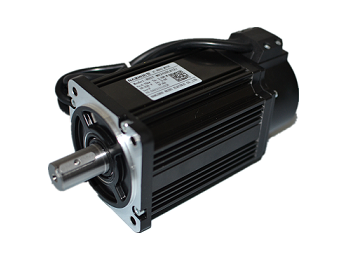

8 Poles Powerful Servo Motor

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Model QC SERIES
Rated Power 0.05KW-7.5KW
Rated Speed 1000RPM-6000RPM
Rated Torque 0.3Nm-100Nm
Voltage 220Vac (3 phase)
Rated Current AAA
Consult immediately
Detail


QC040 SERIES AC SERVO MOTOR 8POLES


Motor Model
QC40D00530K-8E
QC40A00530K-8E
QC40A01030K-8E
Rated Power（KW）
0.05
0.05
0.1
Rated Voltage（V）
DC48
AC220

Rated Current（A）
1.1
0.4
0.6
Rated Speed (r/min)
3000
3000
3000
Rated Torque(N.m)
0.16
0.16
0.32
Peak Torque (N.m)
0.32
0.32
0.64
Voltage Constant(V)
9.2
36.8
32.8
Torque Constant (N.m/A)
0.145
0.4
0.53
Rotor Ineria (Kg.m2)
0.025×10-4
0.025×10-4
0.51×10-4
L-L Resistance (Ω )
6.75
108
34
L-L Induction (mH)
7.5
108
40
Electric Time Constant（ms)
1.11
1
1.18
Weight(kg)
0.32
0.32
0.47
Motor Length L (mm)
75
75
90
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）




QC060 SERIES AC SERVO MOTOR 8POLES


Motor Model
QC060A02030K-8E
QC060A04030K-8E
QC060A06030K-8E
Rated Power（KW）
200
400
600
Rated Voltage（V）
220
220
220
Rated Current（A）
1.2
2.8
3.5
Rated Speed (r/min)
3000
3000
3000
Rated Torque(N.m)
0.64
1.27
1.91
Peak Torque (N.m)
1.91
3.9
5.73
Voltage Constant(V)
30.9
29.6
34
Torque Constant (N.m/A)
0.53
0.45
0.55
Rotor Ineria (Kg.m2)
0.175×1010-4
0.29×10-4
0.39×10-4
L-L Resistance (Ω )
6.18
2.35
1.93
L-L Induction (mH)
29.3
14.5
10.7
Electric Time Constant（ms)
4.74
6.17
5.5
Weight(kg)
1.16
1.6
2.07
Length L (mm)
102
122
146
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）



QC080 SERIES AC SERVO MOTOR 8POLES


Motor Model
QC080A04030K-8E
QC080A07530K-8E
QC080A07320K-8E
QC080A1K025K-8E
QC080A1K230K-8E
Rated Power（KW）
0.4
0.75
0.73
1
1.2
Rated Voltage（V）
220
220
220
220
220
Rated Current（A）
2
3
3
4.4
4.5
Rated Speed (r/min)
3000
3000
2000
2500
3000
Rated Torque(N.m)
1.27
2.39
3.5
4
4
Peak Torque (N.m)
3.8
7.1
10.5
12
14
Voltage Constant(V)
40
48
71
56
48.5
Torque Constant (N.m/A)
0.64
0.8
1.17
0.9
0.88
Rotor Ineria (Kg.m2)
1.05×10ˉ4
1.82×10ˉ4
2.63×10ˉ4
2.97×10ˉ4
2.97×10ˉ4
L-L Resistance (Ω )
4.44
2.88
3.65
1.83
2.2
L-L Induction (mH)
7.93
6.4
8.8
4.72
4.3
Electric Time Constant（ms）
1.66
2.22
2.4
2.58
1.95
Weight(kg)
1.78
2.9
3.9
4.1
4.1
Length L (mm)
123
150
178
190
190
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）



QC90 SERIES AC SERVO MOTOR 8POLES


Motor Model
QC090A07530K-8E
QC090A07320K-8E
QC090A1K025K-8E
Rated Power（KW）
0.75
0.73
1
Rated Voltage（V）
220
220
220
Rated Current（A）
3
3
4
Rated Speed (r/min)
3000
2000
2500
Rated Torque(N.m)
2.4
3.5
4
Peak Torque (N.m)
7.1
10.5
12
Voltage Constant(V)
51
67
60
Torque Constant (N.m/A)
0.8
1.2
1
Rotor Ineria (Kg.m2)
2.45×10ˉ4
3.4×10ˉ4
3.7×10ˉ4
L-L Resistance (Ω )
3.2
4.06
2.69
L-L Induction (mH)
7
9.7
6.21
Electric Time Constant（ms)
2.2
2.39
2.3
Weight(kg)
3.1
3.9
4.2
Length L (mm)
149
171
181
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）




QC110 SERIES AC SERVO MOTOR 8POLES


Motor Model
QC110A06030K-8E
QC110A08030K-8E
QC110A1K520K-8E
QC110A1K220K-8E
QC110A1K830K-8E
Rated Power（KW）
0.6
0.8
1.5
1.2
1.8
Rated Voltage（V）
220
220
220
220
220
Rated Current（A）
2.5
3.5
6
4.5
6
Rated Speed (r/min)
3000
3000
2000
2000
3000
Rated Torque(N.m)
2
4
5
6
6
Peak Torque (N.m)
6
12
15
18
18
Voltage Constant(V)
56
79
62
83
61
Torque Constant (N.m/A)
0.8
1.14
0.83
1.3
1
Rotor Ineria (Kg.m2)
0.31×10ˉ3
0.54×10ˉ3
0.63×10ˉ3
0.76×10ˉ3
0.76×10ˉ3
L-L Resistance (Ω )
3.6
2.41
1.03
1.46
1.46
L-L Induction (mH)
8.32
7.3
3.43
4.7
4.7
Electric Time Constant（ms）
2.3
3
3.33
3.2
3.2
Weight(kg)
4.5
6
6.8
7.9
7.9
Length L (mm)
159
189
204
219
219
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）



QC130 SERIES AC SERVO MOTOR 8POLES


Motor Model & Replacement
QC130A1K825K-8E
QC130A1K325K-8E
QC130A1K525K-8E
QC130A2K025K-8E
QC130A2K020K-8E
QC130A2K315K-8E
QC130A3K825K-8E
QC130A2K320K-8E
Rated Power（KW）
1
1.3
1.5
2
2.1
2.3
3.8
2.3
Rated Voltage（V）
220
220
220
220
220
220
220
220
Rated Current（A）
4
5
6
7.5
8.6
9.5
13.5
9.5
Rated Speed (r/min)
2500
2500
2500
2500
2000
1500
2500
2000
Rated Torque(N.m)
4
5
6
7.7
10
15
15
17
Peak Torque (N.m)
12
15
18
22
25
30
30
30
Voltage Constant(V)
72
68
65
68
70
114
66
114
Torque Constant (N.m/A)
1
1
1
1.03
1
1.58
1.03
1.58
Rotor Ineria (Kg.m2)
0.85×10ˉ3
1.06×10ˉ3
1.26×10ˉ3
1.53×10ˉ3
1.94×10ˉ3
2.77×10ˉ3
2.77×10ˉ3
2.77×10ˉ3
L-L Resistance (Ω )
2.76
1.84
1.21
1.01
0.73
1.1
0.49
1.1
L-L Induction (mH)
6.42
4.9
3.87
2.94
2.45
4.45
2.2
4.45
Electric Time Constant（ms）
2.32
2.66
3.26
3.8
3.36
4.05
4.48
4.05
Weight(kg)
6.2
6.6
7.4
8.3
10.2
14.4
12.6
12.6
Length L (mm)
166
171
179
192
213
241
241
241
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）




QC180 SERIES AC SERVO MOTOR 8POLES


Motor Model & Replacement
QC180A4K520K-8E
QC180A4K315K-8E
QC180A5K515K-8E
QC180A7K515K-8E
QC180B3K015K-8E
QC180B4K315K-8E
QC180B5K515K-8E
QC180B7K515K-8E
Rated Power（KW）
4.5
4.3
5.5
7.5
3
4.3
5.5
7.5
Rated Voltage（V）
220
220
220
220
380
380
380
380
Rated Current（A）
14
16
24
32
7.5
10
12
20
Rated Speed (r/min)
2000
1500
1500
1500
1500
1500
1500
1500
Rated Torque(N.m)
21.5
27
35
48
19
27
35
48
Peak Torque (N.m)
53
67
70
96
47
67
70
96
Voltage Constant(V)
84
103
90
94
170
172
181
156
Torque Constant (N.m/A)
1.34
1.69
1.45
1.5
2.5
2.7
2.9
2.4
Rotor Ineria (Kg.m2)
4.7×10-3
6.1×10-3
8.6×10-3
9.5×10-3
3.8×10ˉ3
6.1×10ˉ3
8.6×10ˉ3
9.5×10ˉ3
L-L Resistance (Ω )
0.31
0.28
0.14
0.11
1.23
0.796
0.62
0.273
L-L Induction (mH)
1.93
1.74
1
0.77
7.3
4.83
4
2.14
Electric Time Constant（ms)
6.22
6.2
7.14
7
5.93
6
6.456
7.8
Weight(kg)
22.3
25.5
30.5
40
20.5
25.5
30.5
40
Motor Length L (mm)
232
262
292
346
232
262
292
346
Feedback Elements
Encremental2500pprEncoder,17/23bitabsoluteencoder,Resolver
Insulation Class
Class F
Protect Grade
IP65
Usage Environment
-20℃ ～ +50℃ Humidity<90%（Non Frosting）
