2000W SRD Motor

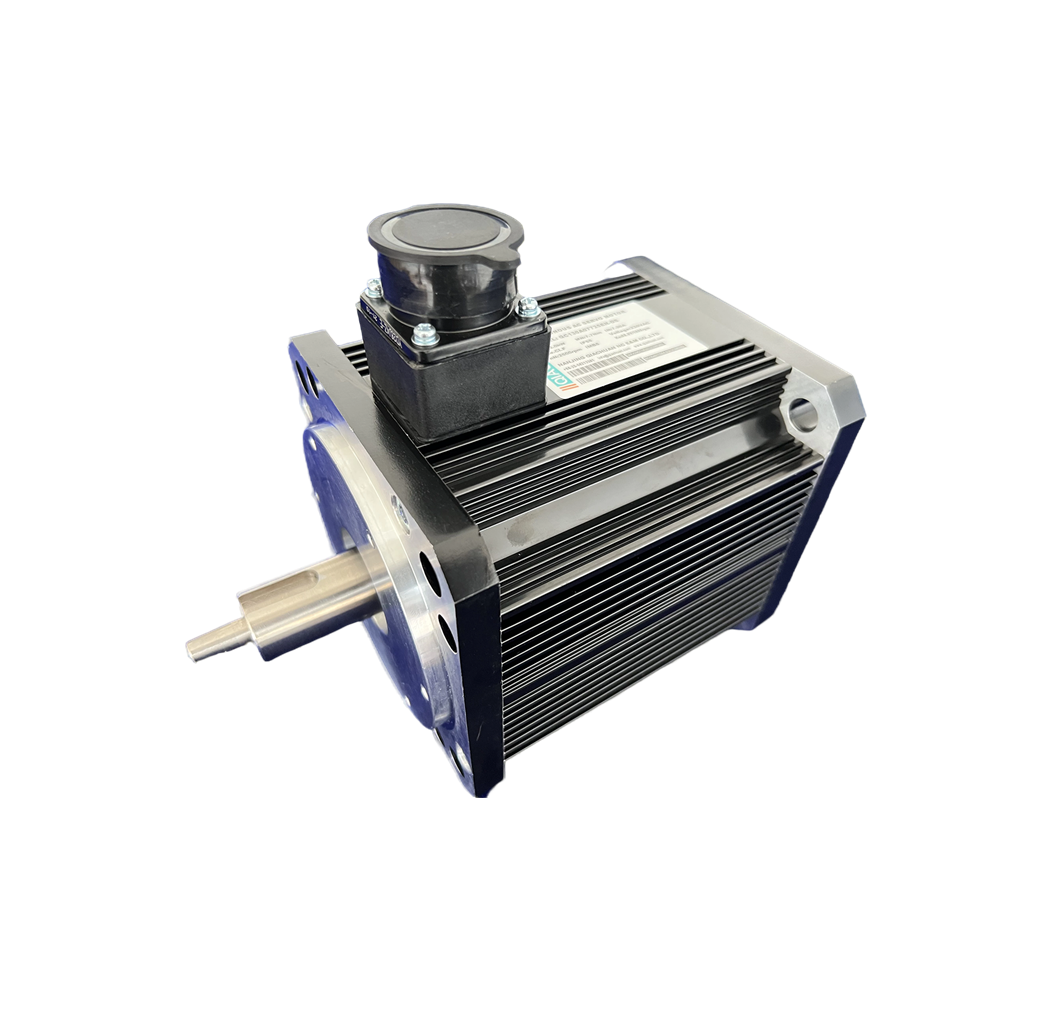

This motor is permanent magnetic servo motor, dimensions are customized based on Spin Rinse Driver (SRD) requirements.

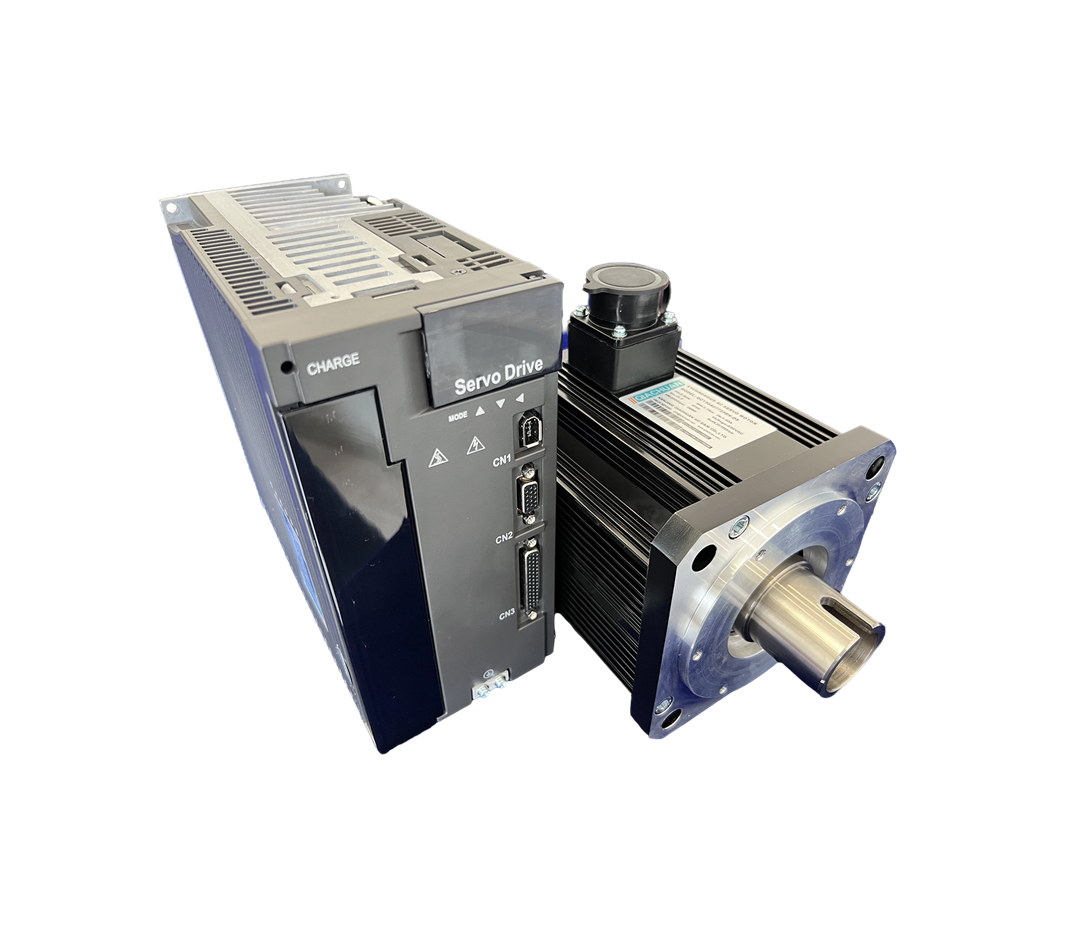

Matched with its supporting control system, which has powerful functions. The equipment manufacturer can choose its own control mode. The servo system (customized motor & customized controller) has the following characteristics:

Low motor temperature rise;

Fast start stop response;

High control accuracy;

Good reliability;

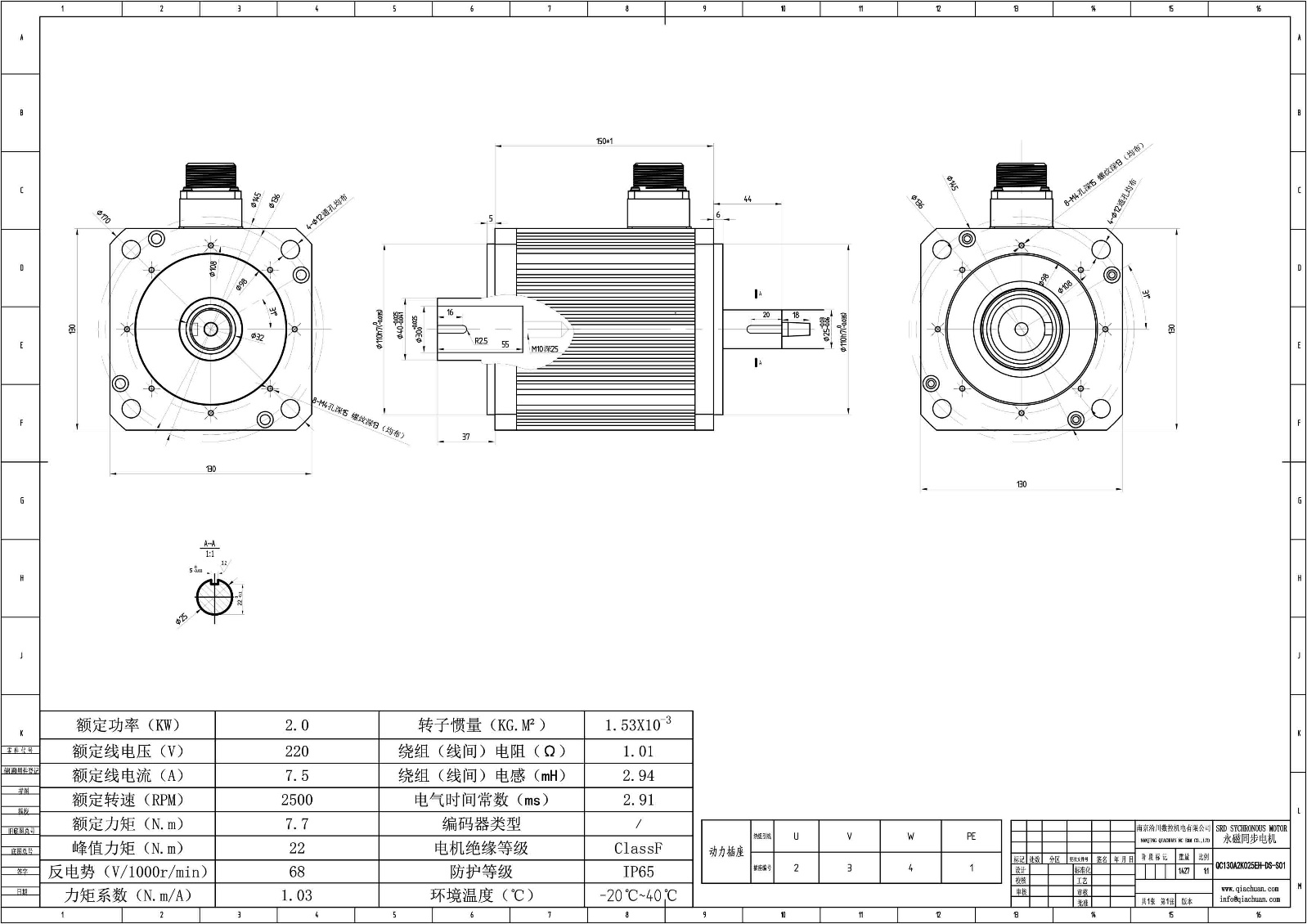

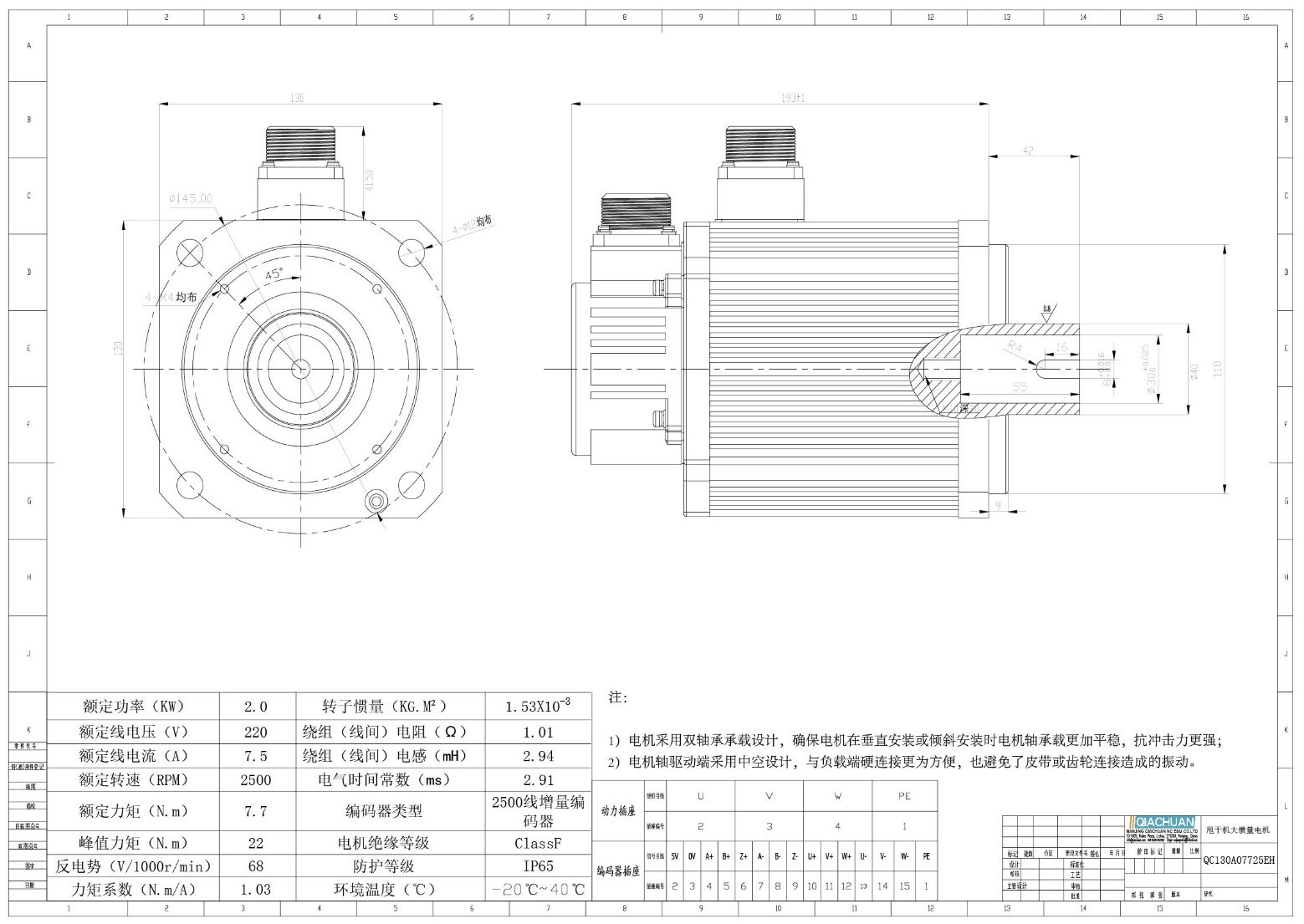

The mechanical size of the dryer motor is close to the imported brand, which is convenient for customers to update and upgrade the equipment;

Motor shaft is made of 2Cr13 or rust proof treatment material to prevent equipment pollution caused by rust;

The front and rear end covers of the motor are processed by non-standard turning and milling, and the installation holes are parallel and symmetrical, facilitating the installation of the customer's bracket;

The motor shaft end adopts hollow design. The customer directly inserts the load basket into the motor shaft. The hard connection effectively avoids the vibration and noise generated by the synchronous belt; A threaded hole is reserved at the bottom of the shaft hole to facilitate customers to firmly fix the load blue.

The motor adopts the external encoder scheme, which is convenient for customers to add pneumatic brake at the rear of the motor;

Motor controller can automatically identify motor parameters, identify encoder zero position, and automatically learn equipment gain requirements;
