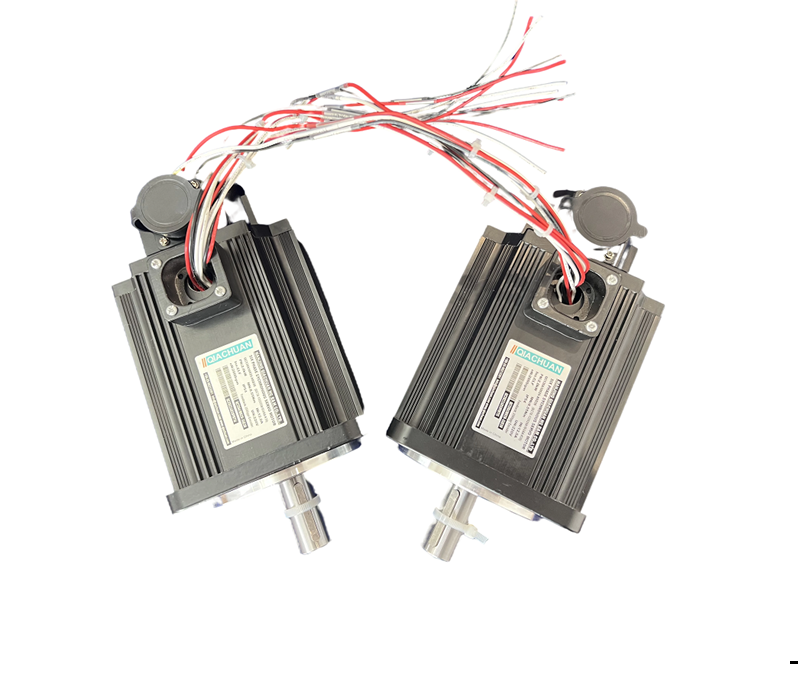

6 PHASE MOTOR

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Model QC SERIES
Rated Power 1000W
Rated Speed 2000rpm
Rated Torque 5Nm
Voltage DC
Consult immediately
Detail


Model
Voltage
Rated output
Rated Torque
Rated speed
Rated current
Peak torque
Peak current
Stall Torque
Stall current
Resistance
Induction
D Resistance
Q Induction
Rotor Inertia
Torque constant
Voltage constant

U
Pn
Mn
Nn
In
Mm
Im
Ts
Is
RL
LL
Ld
Lq
Jm
Kt
Ke

　
W
Nm
rpm
A
Nm
A
N.m
A
Ω
mH
mH
mH
kgcm2
Nm/A
V/Krpm

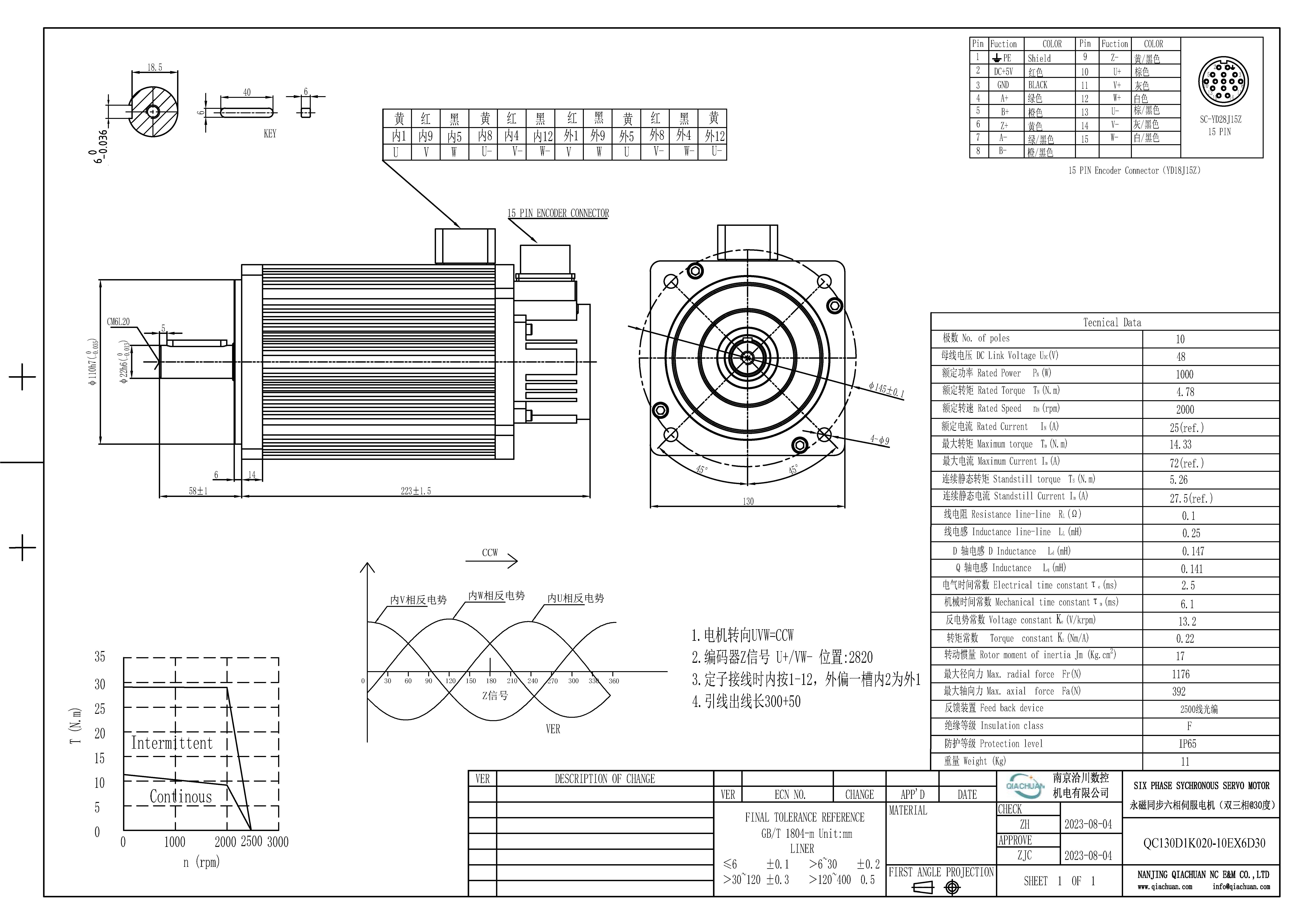

QC130D1K020-10EX6D30
48VDC
1000
4.78
2000
25
14.33
72
5.26
27.5
0.1
0.25
0.147
0.141
17
0.22
13.2
