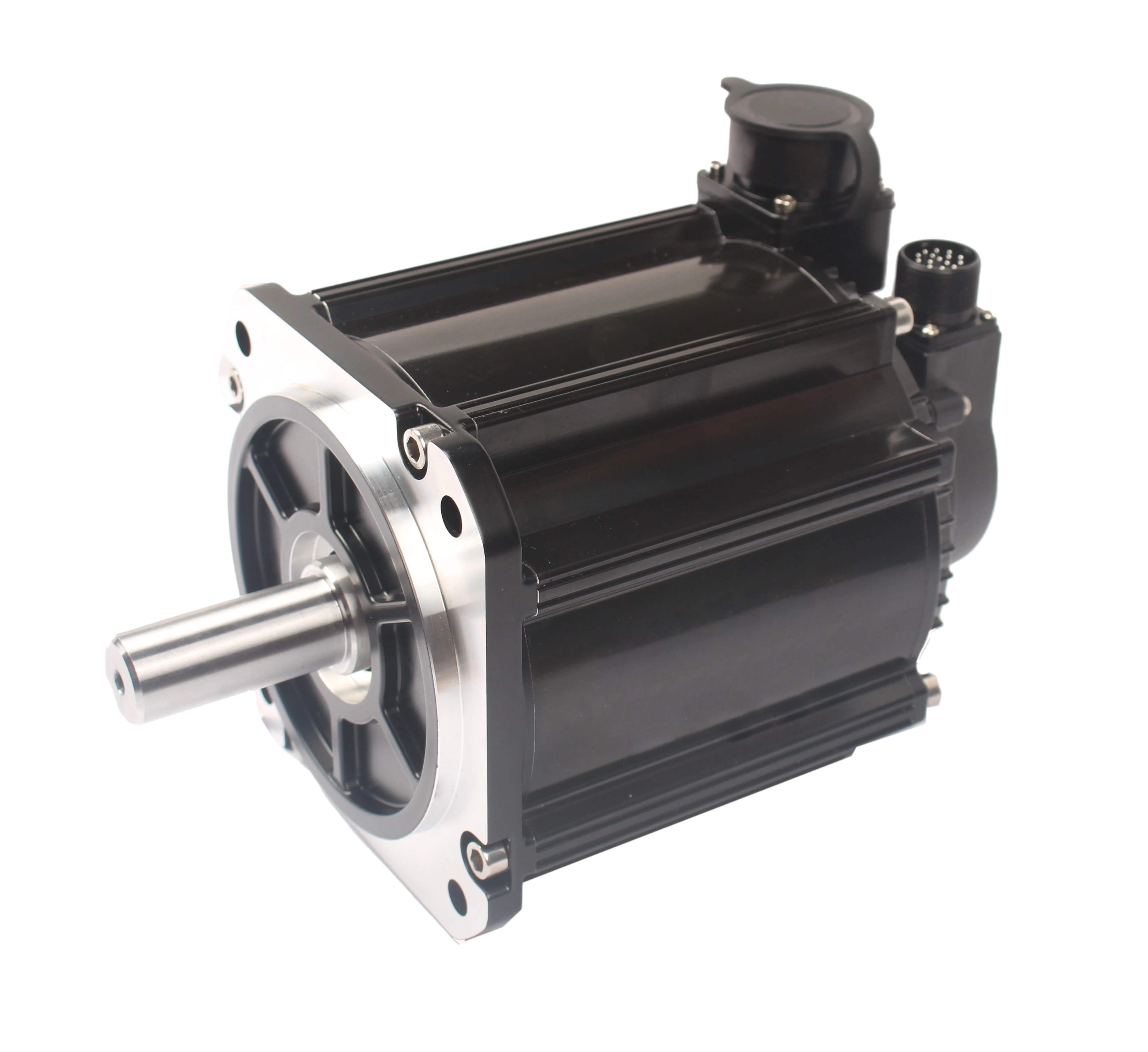

Universal AC Servo Motor

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Model QC SERIES

Rated Power 0.05KW-7.5KW

Rated Speed 1000RPM-6000RPM

Rated Torque 0.3Nm-100Nm

Voltage 220Vac (3 phase)

Rated Current AAA

Consult immediately

Detail

Characteristics:

★ Small/Middle/High Inertia

★ Embedded Magnet Rotor

★ High power density with smaller size

★ Powerful overload capacity

★ High efficiency and low fever

★ Low ripple torque

QC040 Series AC Servo Motor

Model

Voltage

Rated output

Rated Torque

Rated speed

Peak speed

Rated current

Peak torque

Peak current

Poles

Rotor inertia

Torque constant

Voltage constant

rpm

Pair

kgcm2

Nm/A

V/Krpm

QC040A01030K¨-10¨¨¨

220VAC

100

0.31

3000

5000

1.15

1.1

4.2

0.074(0.08)

0.326

19.7

QC040B01030K¨-10¨¨¨

380VAC

100

0.31

3000

5000

0.58

1.1

2.1

0.074 (0.08)

0.652

39.4

QC060 Series AC Servo Motor

Model	Voltage	Rated output	Rated Torque	Rated speed	Peak speed	Rated current	Peak torque	Peak current	Poles	Rotor inertia	Torque constant	Voltage constant
	U	Pn	Mn	Nn	Nn	In	Mm	Im		Jm	Kt	Ke
		W	Nm	rpm	rpm	A	Nm	A	Pair	kgcm2	Nm/A	V/Krpm
QC060A02030K¨-10¨¨¨	220VAC	200	0.64	3000	5000	1.15	1.92	3.6	5	0.26(0.28)	0.66	39.9
QC060B02030K¨-10¨¨¨	380VAC	200	0.64	3000	5000	0.58	1.92	1.85	5	0.26(0.28)	1.32	79.8
QC060A04030K¨-10¨¨¨	220VAC	400	1.28	3000	5000	2.3	3.84	7.2	5	0.52(0.54)	0.66	39.9
QC060B04030K¨-10¨¨¨	380VAC	400	1.28	3000	5000	1.15	3.84	3.7	5	0.52(0.54)	1.32	79.8
QC060A06030K¨-10¨¨¨	220VAC	600	1.91	3000	5000	3.5	5.73	10.8	5	0.72(0.74)	0.66	39.9
QC060B06030K¨-10¨¨¨	380VAC	600	1.91	3000	5000	1.75	5.73	5.55	5	0.72(0.74)	1.32	79.8

QC080 Series AC Servo Motor

Model	Voltage	Rated output	Rated Torque	Rated speed	Peak speed	Rated current	Peak torque	Peak current	Poles	Rotor inertia	Torque constant	Voltage constant
	U	Pn	Mn	Nn	Nn	In	Mm	Im		Jm	Kt	Ke
		W	Nm	rpm	rpm	A	Nm	A	Pair	kgcm2	Nm/A	V/Krpm
QC080A07530K¨-10¨¨¨	220VAC	750	2.4	3000	5000	4.1	7.2	13	5	1.33(1.42)	0.66	39.9
QC080B07530K¨-10¨¨¨	380VAC	750	2.4	3000	5000	2.1	7.2	6.6	5	1.33(1.42)	1.32	79.8
QC080A1K030K¨-10¨¨¨	220VAC	1000	3.18	3000	5000	5.5	9.55	17	5	1.81 (1.9)	0.66	39.9
QC080B1K030K¨-10¨¨¨	380VAC	1000	3.18	3000	5000	2.8	9.55	8.5	5	1.81 (1.9)	1.32	79.8
QC080A1K230K¨-10¨¨¨	220VAC	1200	3.82	3000	3700		11.46		5	2.47(2.87)
QC080A1K530K¨-10¨¨¨	220VAC	1500	4.8	3000	5000	10	14.4	31	5	2.75(3.15)	0.55	33.5

QC130 Series AC Servo Motor

Model	Voltage	Rated output	Rated Torque	Rated speed	Peak speed	Rated current	Peak torque	Peak current	Poles	Rotor inertia	Torque constant	Voltage constant
	U	Pn	Mn	Nn	Nn	In	Mm	Im		Jm	Kt	Ke
		W	Nm	rpm	rpm	A	Nm	A	Pair	kgcm2	Nm/A	V/Krpm
QC130A1K020K¨-10¨¨¨	220VAC	1000	4.78	2000	3000	5.65	14.33	17.5	5	10.6(11.6)	0.99	59.6
QC130B1K020K¨-10¨¨¨	380VAC	1000	4.78	2000	3000	2.85	14.33	8.75	5	10.6(11.6)	1.97	119.2
QC130A1K520K¨-10¨¨¨	220VAC	1500	7.16	2000	3000	8.45	21.5	26.25	5	15.9(16.9)	1	60.7
QC130B1K520K¨-10¨¨¨	380VAC	1500	7.16	2000	3000	4.25	21.5	13.15	5	15.9(16.9)	2	121.4
QC130A2K020K¨-10¨¨¨	220VAC	2000	9.55	2000	3000	11.25	28.65	35	5	20.3(21.3)	1	60.7
QC130B2K020K¨-10¨¨¨	380VAC	2000	9.55	2000	3000	5.65	28.65	17.5	5	20.3(21.3)	2	121.4
QC130A3K020K¨-10¨¨¨	220VAC	3000	14.34	2000	3000	17	43	52.5	5	30(31)	1	60.7
QC130B3K020K¨-10¨¨¨	380VAC	3000	14.34	2000	3000	8.5	43	26.25	5	30(31)	2	121.4

QC180 Series AC Servo Motor

Model	Voltage	Rated output	Rated Torque	Rated speed	Peak speed	Rated current	Peak torque	Peak current	Poles	Rotor inertia	Torque constant	Voltage constant
	U	Pn	Mn	Nn	Nn	In	Mm	Im		Jm	Kt	Ke
		W	Nm	rpm	rpm	A	Nm	A	Pair	kgcm2	Nm/A	V/Krpm
QC180A3K020K¨-10¨¨¨	220VAC	3000	14.33	2000	3000	16.7	43	52	5	42.5(45)	1	60.7
QC180B3K020K¨-10¨¨¨	380VAC	3000	14.33	2000	3000	8.4	43	26	5	42.5(45)	2	121.4
QC180A4K020K¨-10¨¨¨	220VAC	4000	19.1	2000	3000	22.5	57.3	68	5	55(57.5)	1	60.7
QC180B4K020K¨-10¨¨¨	380VAC	4000	19.1	2000	3000	11.3	57.3	34	5	55(57.5)	2	121.4
QC180A5K020K¨-10¨¨¨	220VAC	5000	23.88	2000	3000	28.5	71.64	86	5	63(65.5)	1	60.7
QC180B5K020K¨-10¨¨¨	380VAC	5000	23.88	2000	3000	14.3	71.64	43	5	63(65.5)	2	121.4
QC180A6K020K¨-10¨¨¨	220VAC	6000	28.65	2000	3000	34.2	86	105	5	83(85.5)	1	60.7
QC180B6K020K¨-10¨¨¨	380VAC	6000	28.65	2000	3000	17.1	86	53	5	83(85.5)	2	121.4
QC180A7K520K¨-10¨¨¨	220VAC	7500	35.81	2000	3000	43	107.5	130	5	115(117.5)	1	60.7
QC180B7K520K¨-10¨¨¨	380VAC	7500	35.81	2000	3000	21.5	107.5	65	5	115(117.5)	2	121.4
